SPECIFICATIONS
Detector Type
Cooled InSb FPA
Pixel Size
640(H) X 512(V)
Pixel Pitch
15㎛
Spectral Response
3㎛ ~ 5㎛
Frame Rate
30 ~ 200Hz
Cold Shield
F/4
NETD
<17mK typical (without lens)
Cooler Type
Rotary Stirling Cooler, MTBF: 12,000 Hours
Cool-down Time
<7 Minute (@25˚C, Max)
Output Frequency
NTSC: 59.94Hz (30fps), PAL: 50Hz (25fps)
Video Output
CVBS: 1.0Vp-p / 75Ω, Option (Camera Link, HD-SDI, BT.1120)
Resolution
640(H) x 512(V)
Interface Protocol
RS-232, RS-422
Baud Rate
2400/4800/9600/19200/38400/57600/115200 bps
Interface Type
DSUB-15P

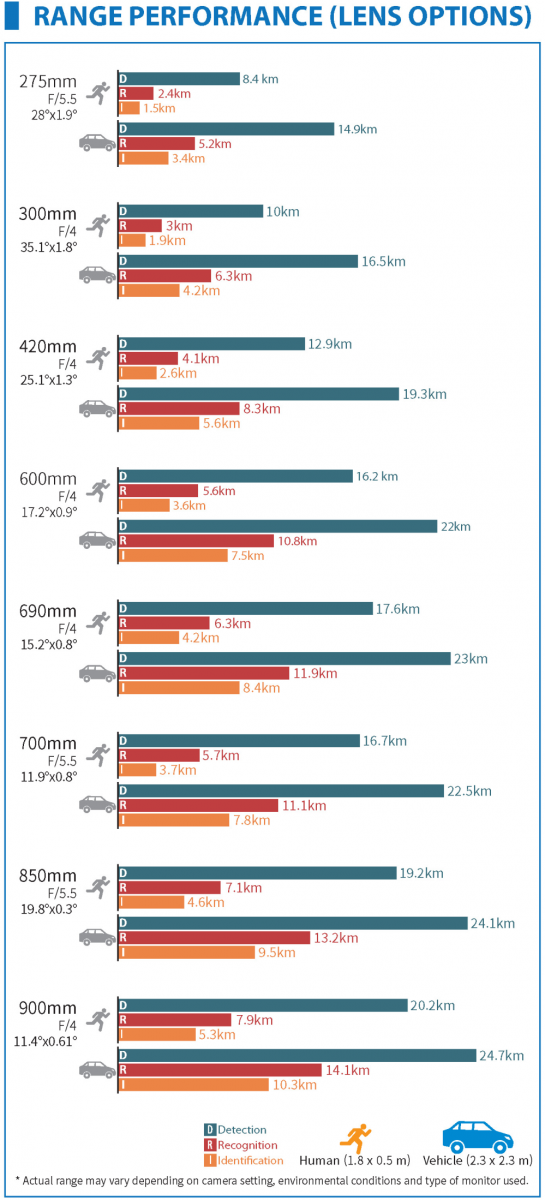

Lens
15 to 300mm (35.1° ~ 1.8°) / 21 to 420 mm (25.1° ~ 1.3°) / 30 to 600mm (17.2° ~ 0.9°) / 35 to 690mm (15.2° ~ 0.8°) / 45 to 900mm (11.4° ~ 0.61°), Continuos
Calibration
Manual /Interval(sec) Mode Selectable
Image Translation
FLIP (Vertical, Horizontal), Inverse, Freeze
Image Enhance
AGC, MIDE, Sharpness, Smooth
Image Utility
Auto Focus, Digital Zoom(8x), DIS (Digital Image Stabilization)
Pseudo Color
Gray / Rainbow / Iron / Glow Bow / 2 Color
OSD
Full Functions Menu Available
Dimensions (WxHxD)
Without Lens: 82.5 x 92.2 x 133mm, 15 to 300mm: 128 x 125 x 253.7mm±1mm, 21 to 420mm: 133.5 x 136.3 x 317.2mm, 30 to 600mm: TBD, 34.5 to 690mm: 210 x 210 x 388, 45 to 900mm: 286 x 286 x 470mm
Weight
Without Lens: 1.02kg, 15-300mm: 3.3kg, 21-420mm: 4kg, 30 to 600mm: TBD, 35-690mm: 7.5kg, 45 to 900mm: 10.4kg
Power Consumption
DC20 ~ DC32V / 850mA [20.4W] (Max)
Power Supply
DC24V, 1A
Operating Temperature
-32˚C ~ 55˚C
