SWIR Camera

SUMO-C900

EVPU

SUMO-C900 (analogue version) and SUMO-C900HD (HD version) are highly sensitive cooled mid-wave thermal imaging cameras designed for easy integration into a wide variety of multi-sensor applications. They provide clean and sharp image and, in good visibility conditions, they are able to detect human targets at a distance of more than 19 km (SUMO-C900) and 20 km (SUMO-C900HD). The cameras consist of a cooled mid-wave infra-red (MWIR) detector with 20x optical zoom (SUMO-C900) or 12.5x optical zoom (SUMO-C900HD) and an autofocus function. Together with all the other main electronic components, this detector is sealed in a solid rugged housing to ensure that the devices can operate in all weather conditions. SUMO-C900 and SUMO-C900HD offer a reliable and cost-effective solution that fully meets the requirements of MIL-STD 810 and MIL-STD 461.

REQUEST INFO

SPECIFICATIONS

IR Camera
Sensor SUMO-C900: 640 x 512 / SUMO-C900HD: 1280 x 720
Spectral Sensitivity 3 – 5 µm
Thermal Sensitivity <25 mK
Pixel Pitch SUMO-C900: 15 µm / SUMO-C900HD: 10 µm
Lens SUMO-C900: 45 - 900 mm / SUMO-C900HD: 72 - 900 mm
Optical Zoom SUMO-C900: 20x continuous / SUMO-C900HD:12.5x continuous
FOV SUMO-C900: Wide: 11.4° x 9.15° - Tele: 0.6° x 0.35° / SUMO-C900HD: Wide: 9.3° x 5.25° - Tele: 0.8° x 0.45°
F# f/4.0
Video Output SUMO-C900: PAL / NTSC / SD-SDI / Low latency stream H.264 - SUMO-C900HD: HD-SDI / Low latency stream H.264
Others
Control Interface RS-232
Power Supply 24 V DC (18 - 32 V)
Operating Temperature -32 °C to +55 °C
Storage Temperature -40 °C to +70 °C
Environmental Protection IP 66
Autofocus One shot autofocus
Weight 21.5 kg
Dimensions (W x D x H) 300 x 651 x 357 mm
Standard MIL-STD-810, MIL-STD-461

Features

- AGC (automatic gain control in linear, histogram and manual modes)
- AGC parameters adjustments (level, gain, tail rejection, gain limit, histogram plateau)
- DRE (dynamic range enhacement)
- sharpening
- OSD + user text
- autofocus
- noise reduction
- reticle and saving reticle position
- progressive scan
- 8x digital zoom
- pseudocolor palettes
- BPR (bad pixels removal)
- integration time and period adjustment
- automatic precalibrated NUC tables loading
- lens defrost
- image stabilization

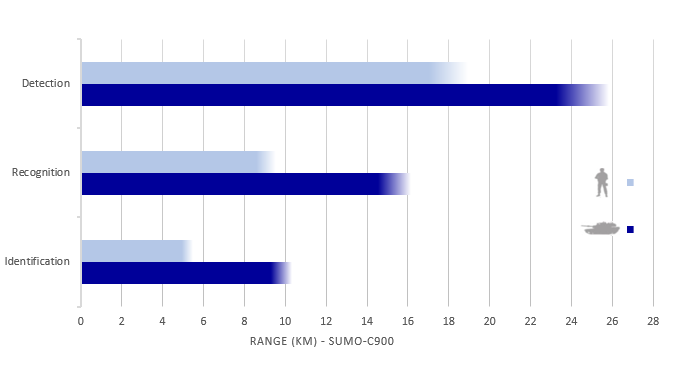

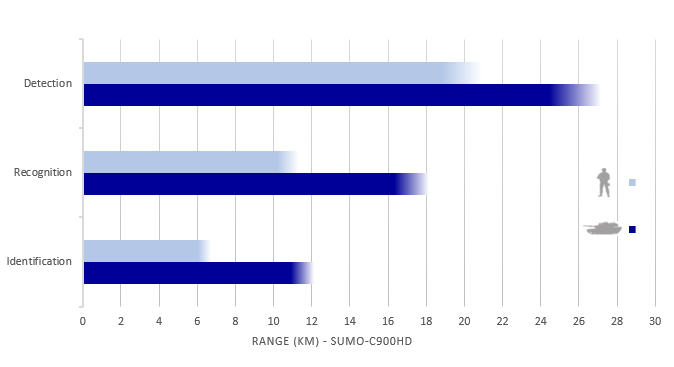

Range Performance
