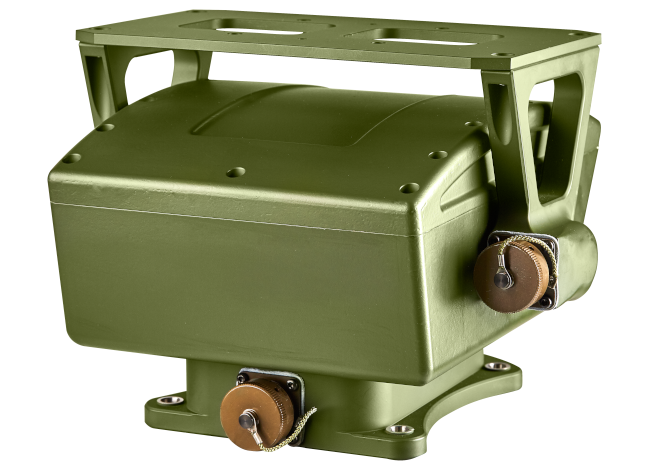

Pan tilt positioner
MSM-2A
EVPU
Two-axis pan tilt positioner MSM-2A is designed and engineered specially for short and middle range electro-optical surveillance systems with lightweight sensors which do not require azimuth and elevation rotation at a high angle speed. This pan and tilt unit can carry three sensors such as a short range day camera, uncooled thermal imaging (IR) camera and laser range finder (LRF) placed on the upper platform of the unit.
REQUEST INFOSPECIFICATIONS
Azimuth range
n x 360°
Elevation range
±25°
Azimuth speed
0.1 °/s to 50 °/s
Elevation speed
0.1 °/s to 25 °/s
Positioning accuracy
≤ ±1 mrad
Control interface
RS-422 (Ethernet TCP/IP)
Power supply
24 V DC (18 - 28 V)
Payload
10 kg
Environmental protection
IP 66
Operating temperature
32 °C to +55 °C
Dimensions (w x d x h)
234 x 232 x 178 mm
Weight
7 kg
