Mid-range EOS

MIRA Series

EVPU

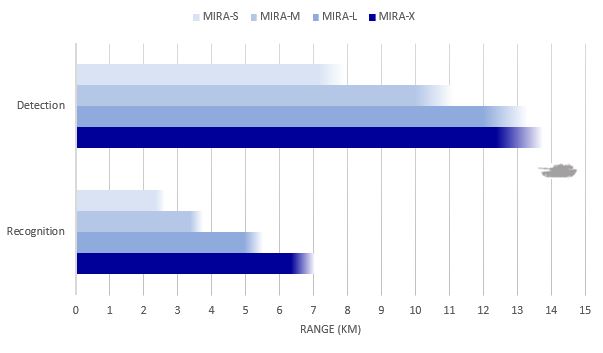

Stationary electro-optical surveillance systems are used for monitoring and surveillance of areas of interest such as boundary lines, airports, oil refineries, power plants, coastal areas and other areas with increased demands for flexible protection against penetration by intruders during day or/and night time. MIRA series is intended for middle observation range for detection of NATO targets. Basic configuration comprises two axes pan and tilt positioner, uncooled thermal camera, day camera and laser range finder. All electro-optical surveillance systems can be controlled through various operator consoles with different software packages. Basic configuration comprises two axes pan and tilt positioner, uncooled thermal camera, day camera and laser range finder. All electro-optical surveillance systems can be controlled through various operator consoles with different software packages.

REQUEST INFO

SPECIFICATIONS

Pan/Tilt Positioner
Azimuth Range n × 360°
Elevation Range ±90°
- MIRA-X ±35°
Azimuth Speed max. 50 °/s
- MIRA-X max. 70 °/s
Elevation Speed max. 50 °/s
- MIRA-X max. 30 °/s
Positioning Accuracy ≤±1.5 mrad
- MIRA-X ≤±0.5 mrad
Operating Temperature -32 °C to +55 °C
Storage Temperature -40 °C to +70 °C
Environmental Protection IP 66
Laser Rangefinder
- MIRA-S 6 000 m
- MIRA-M 6 000 m
- MIRA-L 10 000 m
- MIRA-X 20 000 m
