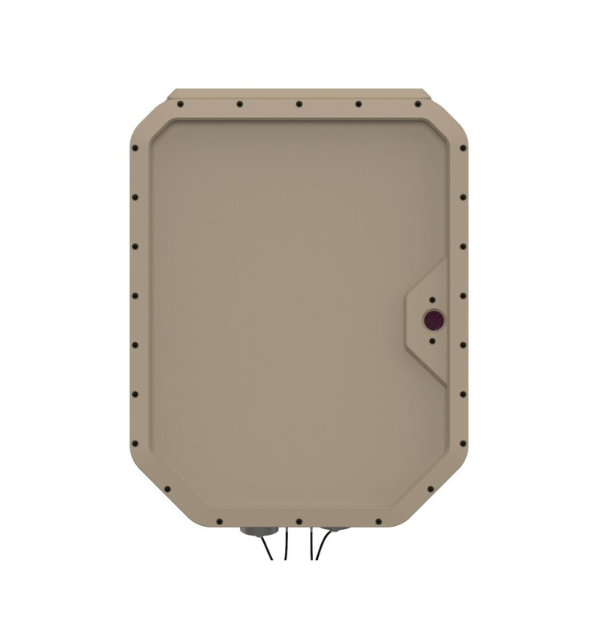

Next-Generation Cognitive Radar EchoShield® is a next-generation, software-defined, medium-range, pulse-Doppler, cognitive 4D radar operating in the Ku-band (15.4-16.6 GHz) for radionavigation and radiolocation applications. Dense Tx/Rx cells create the industry’s most accurate spatial data for sensor fusion, command & control (C2) interfaces, and other intelligent systems and platforms. Waveforms tailored for high-accuracy classification deliver a decluttered data stream rich with metadata about tracked objects. High-speed data slews optical sensors and directs mitigation platforms with extraordinary precision.

REQUEST INFO

SPECIFICATIONS

RADAR PERFORMANCE
Frequency Ku-band 15.4 – 16.6 GHz
Field of View 130° Azimuth x 90° Elevation
Track Accuracy < 0.5° Azimuth x < 0.5° Elevation
Track Update Rate 10 Hz
Max Tracks > 1,000 Objects of Interest

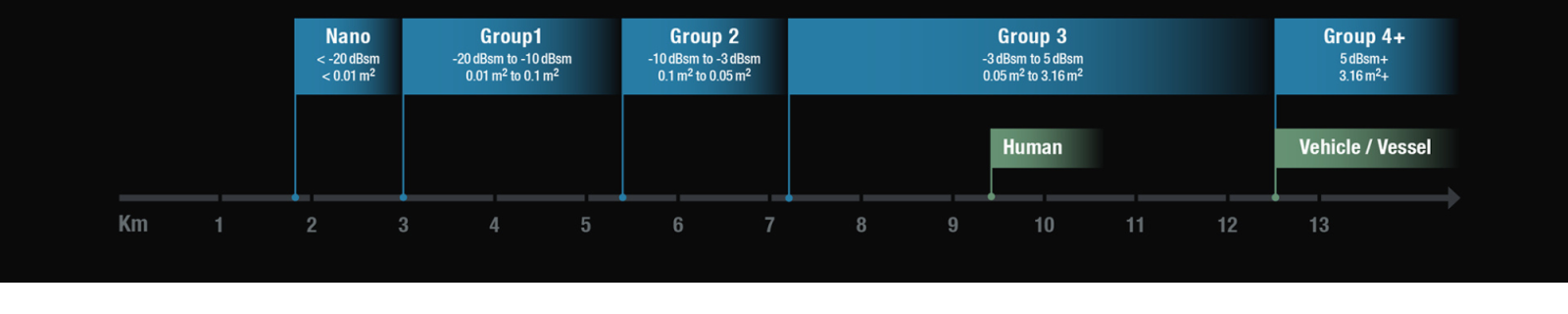

Instrumented Range 30 km (Mission Defined)
SWAP & ENVIRONMENTAL

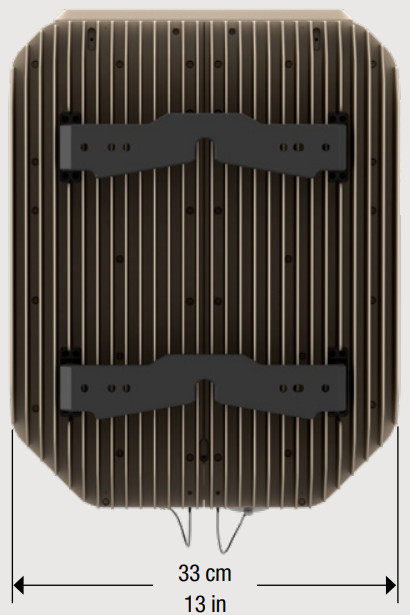

Size 42.5 cm x 33 cm x 18 cm
Weight 17.8 kg
Power + 21.5 to + 33 VDC < 250 W (Operating) < 100 W (Hot Standby)
Operating Temp - 40° C to + 65° C
Weather Protection IP67
Environmental MIL-STD-810 H
INTEGRATION & DATA
Control I/O Gigabit Ethernet
Power I/O MIL-STD_38999 Style Bayonet
Data Output 10 Gbps Ethernet Range-Doppler Spectrograms 1 Gbps Ethernet Detections, Measurements Tracks, Radar Status
Mounting 4x M6 200 mm Bolt Pattern
