MESA Radar
EchoFlight
ECHODYNE
The market-leading short-range airborne radar combines ultra-low SWaP and high performance to extend situational awareness as far as the UAS can operate.
REQUEST INFOSPECIFICATIONS
RADAR PERFORMANCE
Frequency
K-band 24.45 – 24.65 GHz
Field of View
120° Azimuth x 80° Elevation
Track Accuracy
< 1° Azimuth x < 1.5° Elevation
Track Update Rate
10 Hz
Max Tracks
Up to 20 Simultaneous Tracks
Instrumented Range
6 km
Range
sUAV: > 750 m (Phantom 4) / > 1 km (Matrice 600) / Cessna: > 2 km
SWaP & ENVIRONMENTAL
Size
18.7 cm x 12 cm x 4 cm
Weight
817 g (Natural Convection)
Power
+ 12 to + 28 VDC 45 W (Operating) < 10 W (Hot standby)
Operating Temp
- 40° C to + 75° C
Weather Protection
IP67
INTEGRATION & DATA
Control I/O
Gigabit Ethernet
Power I/O
Snap Lock 12 Pin Connector
Data Output
R/Vmaps: 40 MBps / Detections: 1 MBps / Measurements: 1 MBps / Tracks: 25 KBps

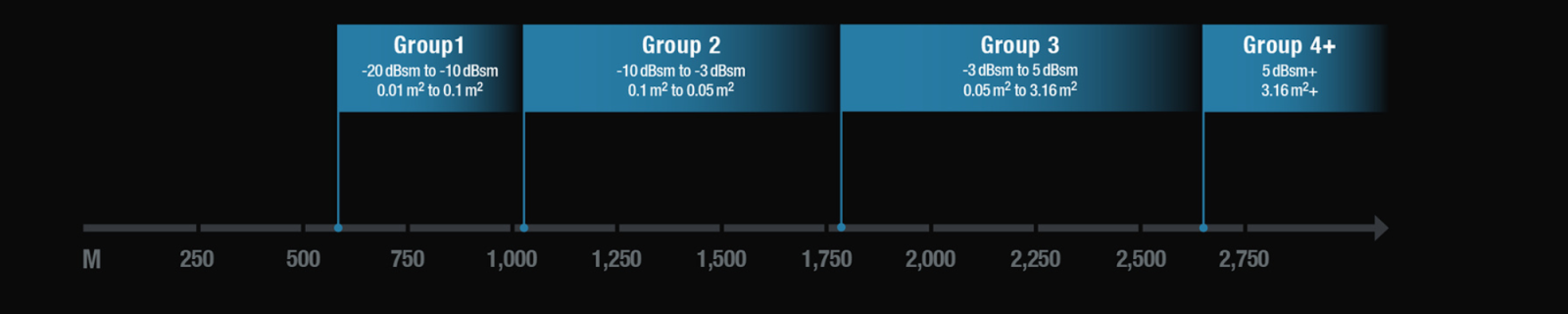

Tracking Ranges
Not "detection" range. Not "best" range. Typical performance with solid radar track.
