Video Processing Board

CHARM100NX

Vision4CE

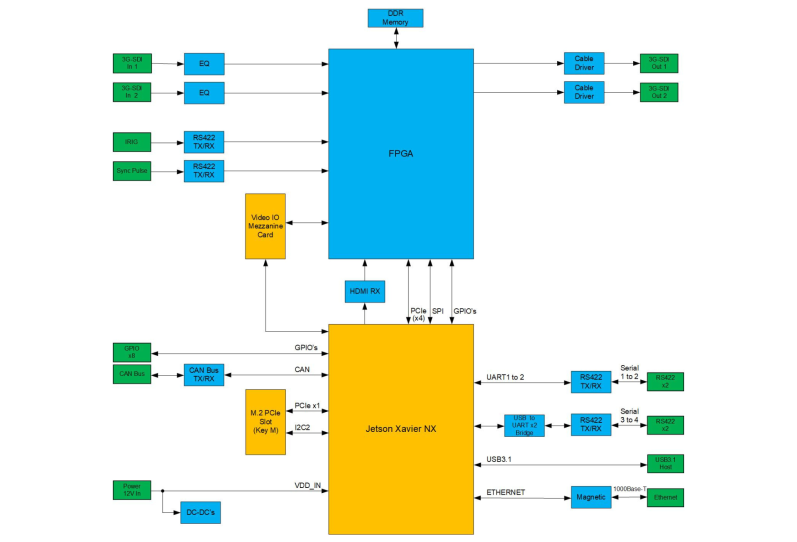

The Vision4ce CHARM-100NX is a standalone video processing board for embedded video and image processing applications, which is designed to host the Vision4ce FrameWorkx image processing software which build upon the field proven DART video tracking software. The CHARM-100NX is based on a NVIDIA Xavier NX embedded processor which incorporates a multicore ARM processor and powerful AI/ML accelerator. The standard video interfaces are 3G/HD/SD SDI. Optional video interfaces are supported through a video mezzanine which can include PAL/NTSC composite, HD YPrPb component, CameraLink, CoaxPress and additional 3G/HD/SD SDI inputs. The primary host interface is through an Ethernet port. Multiple serial links are also provided. The M.2 slot can be used to add up to an SSD, 2 additional Ethernet ports, or other connections.

REQUEST INFO

SPECIFICATIONS

Interfaces
Video Inputs • 2 x digital video inputs – SD-SDI, HDSDI, 3G-SDI, 480i60, 576i50, 720p50/59.94/60, 1080p25/29.97/30, 1080i50/59.94/60, 1080p50/59.94/60) • Mezzanine Expansion Camera Link, CoaXPress, Analogue (PAL/NTSC/ YPbPr)
Video Outputs • 2 x digital video outputs – SD-SDI, HDSDI, 3G-SDI • Selectable symbology overlay on outputs • Mezzanine card can also support video outputs.
Data • 1 x USB 3.0 • 1 x Ethernet – 10/100/1000 Base-T • 4 x Serial RS422 • 1 x CAN bus • 1 x IRIG DCLS input • 8 x GPIO (4 inputs, 4 outputs)
Electrical
Power • 12VDC +/-5% • <30W
Mechanical
Dimensions 100 x 100 x 27mm (3.94” x 3.94” x 0.6”)
Environmental
Temperature Operating -25C to +71C – Non-operating -40C to +85C
Humidity 5% to 95% non-condensing – Optional conformal coating available
Shock 30g, 11ms
