Radar

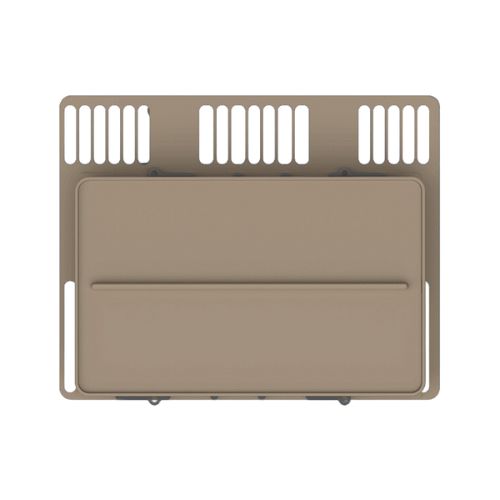

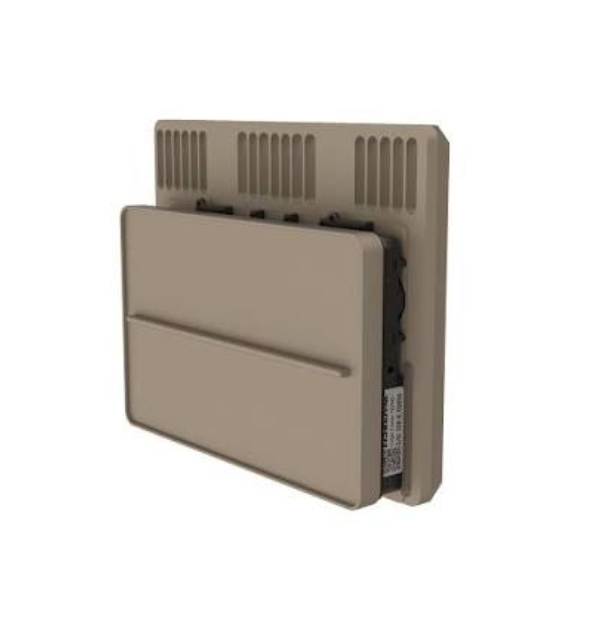

EchoGuard

Echodyne

Echodyne combines patented MESA technology with powerful software to deliver ESA performance in a compact solid-state format that detects, tracks, and classifies objects of interest on the ground or in the air, regardless of weather or lighting conditions. Breakthrough Tx/Rx module density directs thousands of pencilthin beams across the 120° azimuth x 80° elevation field of view in milliseconds. EchoGuard rapidly detects and precisely tracks up to 20 objects of interest, delivering high-fidelity data in a proprietary format over a standard TCP/IP Gigabit Ethernet connection. With multiple data-rich output options available by API, including raw data, EchoGuard’s superior spatial accuracy creates a robust data foundation for a range of Defense application

REQUEST INFO

SPECIFICATIONS

Radar Performance
Frequency K-band 24.05 – 24.25 GHz
Field of View 120° Azimuth x 80° Elevation
Track Accuracy < 1° Azimuth x < 1.5° Elevation
Track Update Rate 10 Hz

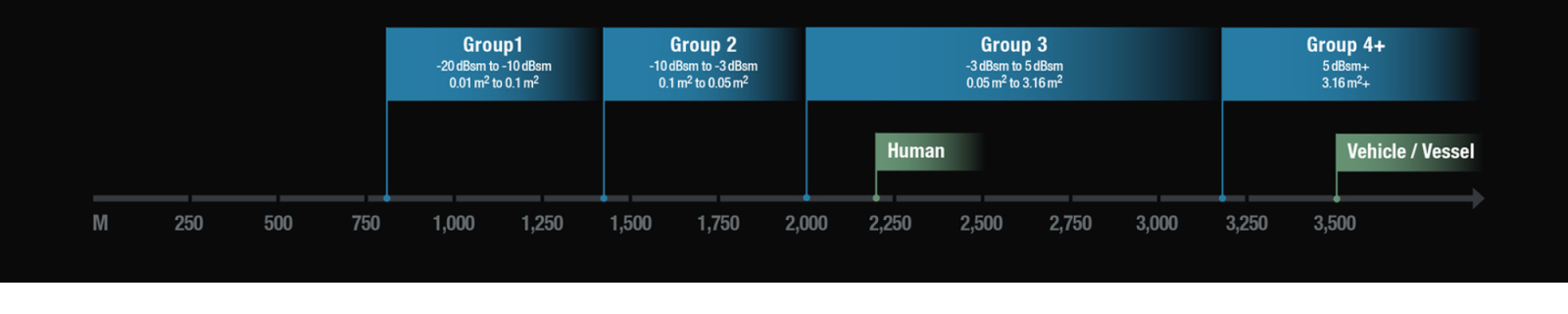

Instrumented Range 6 km
- sUAV: > 1 km (Phantom 4)
- Vehicle: > 3.5 km
- Human: > 2.2 km
SWaP & Environmental

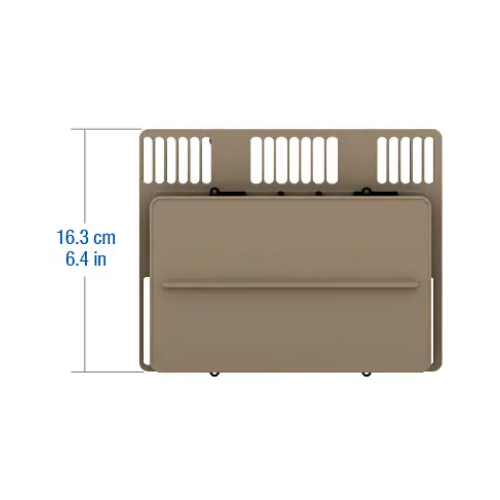

Size 20.3 cm x 16.3 cm x 4 cm
Weight 1.25 kg
- Voltage: + 15 to + 24 VDC
- Operating: 50W
- Hot Standby: < 7 W
Operating Temp - 40° C to + 75° C
Weather Protection IP67
Integration & Data
Control I/O Gigabit Ethernet
Power I/O Snap Lock 12 Pin Connector
- R/V Maps: 40 MBps
- Detections: 1 MBps
- Measurements: 1 MBps
- Tracks: 25 KBps
Mounting VESA 75 & 100 mm
